Schema MSFD8bPressures_2p0.xsd

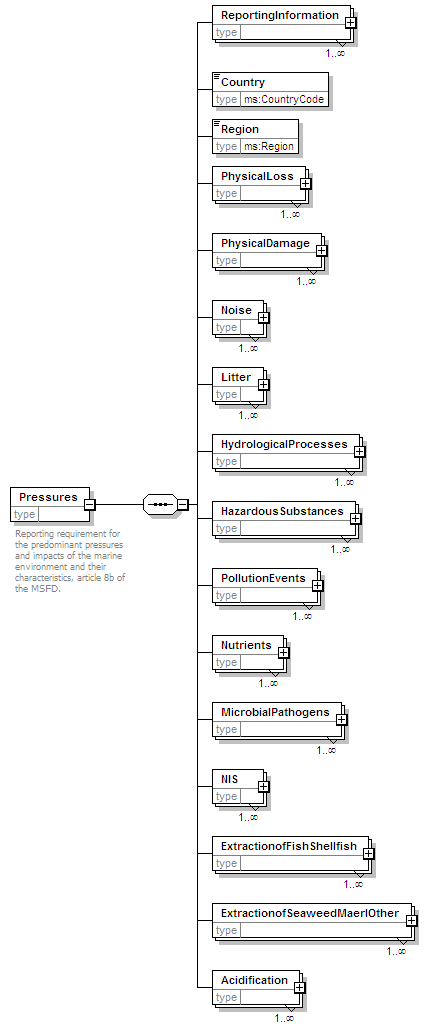

element Pressures
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p1.png

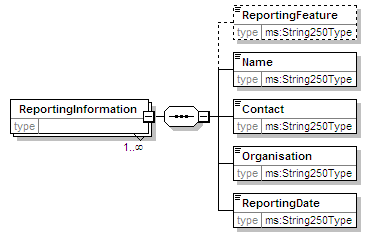

element Pressures/ReportingInformation
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p2.png

element Pressures/ReportingInformation/ReportingFeature
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p3.png
type String250Type
facets
Kind Value
minLength 1
maxLength 255

element Pressures/ReportingInformation/Name
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p4.png
type String250Type
facets
Kind Value
minLength 1
maxLength 255

element Pressures/ReportingInformation/Contact
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p5.png
type String250Type
facets
Kind Value
minLength 1
maxLength 255

element Pressures/ReportingInformation/Organisation
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p6.png
type String250Type
facets
Kind Value
minLength 1
maxLength 255

element Pressures/ReportingInformation/ReportingDate
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p7.png
type String250Type
facets
Kind Value
minLength 1
maxLength 255

element Pressures/Country
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p8.png
type CountryCode
facets
Kind Value
enumeration AT
enumeration BE
enumeration BG
enumeration CZ
enumeration CY
enumeration DE
enumeration DK
enumeration EE
enumeration EL
enumeration ES
enumeration FI
enumeration FR
enumeration HR
enumeration HU
enumeration IE
enumeration IT
enumeration LT
enumeration LU
enumeration LV
enumeration MT
enumeration NL
enumeration PL
enumeration PT
enumeration RO
enumeration SE
enumeration SI
enumeration SK
enumeration UK
enumeration NotReported

element Pressures/Region
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p9.png
type Region
facets
Kind Value
enumeration BAL
enumeration ATL
enumeration ANS
enumeration ACS
enumeration ABI
enumeration AMA
enumeration MED
enumeration MWE
enumeration MAD
enumeration MIC
enumeration MAL
enumeration BLK
enumeration NotReported

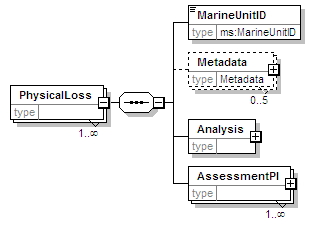

element Pressures/PhysicalLoss
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p10.png

element Pressures/PhysicalLoss/MarineUnitID
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p11.png
type MarineUnitID
facets
Kind Value
minLength 3
maxLength 42

element Pressures/PhysicalLoss/Metadata
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p12.png
type Metadata

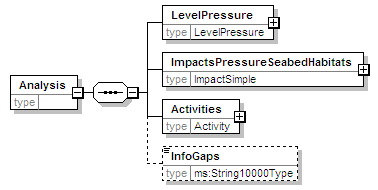

element Pressures/PhysicalLoss/Analysis
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p13.png

element Pressures/PhysicalLoss/Analysis/LevelPressure
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p14.png
type LevelPressure

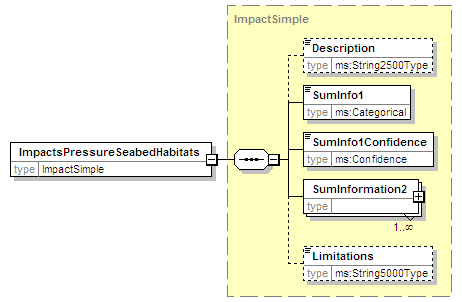

element Pressures/PhysicalLoss/Analysis/ImpactsPressureSeabedHabitats
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p15.png
type ImpactSimple

element Pressures/PhysicalLoss/Analysis/Activities
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p16.png
type Activity

element Pressures/PhysicalLoss/Analysis/InfoGaps
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p17.png
type String10000Type
facets
Kind Value
minLength 1
maxLength 10000

element Pressures/PhysicalLoss/AssessmentPI
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p18.png

element Pressures/PhysicalLoss/AssessmentPI/Topic
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p19.png
type TopicAssessPhysicalLoss
facets
Kind Value
enumeration PhysicalLoss6_1
enumeration PhysicalLoss6_2
enumeration NotReported

element Pressures/PhysicalLoss/AssessmentPI/Assessment
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p20.png
type Assessment

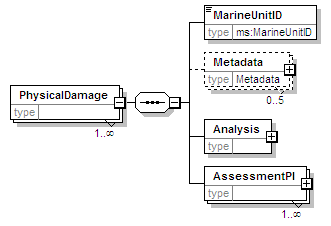

element Pressures/PhysicalDamage
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p21.png

element Pressures/PhysicalDamage/MarineUnitID
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p22.png
type MarineUnitID
facets
Kind Value
minLength 3
maxLength 42

element Pressures/PhysicalDamage/Metadata
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p23.png
type Metadata

element Pressures/PhysicalDamage/Analysis
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p24.png

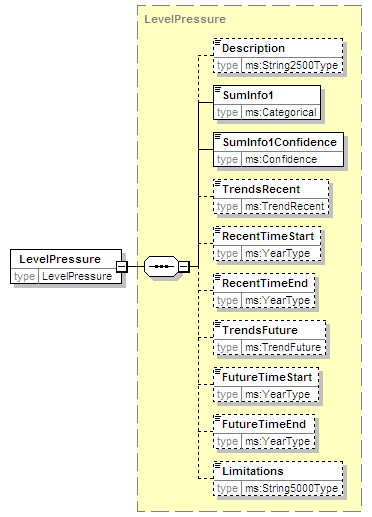

element Pressures/PhysicalDamage/Analysis/LevelPressure
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p25.png
type LevelPressure

element Pressures/PhysicalDamage/Analysis/ImpactspressureSebedHabitats
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p26.png
type ImpactSimple

element Pressures/PhysicalDamage/Analysis/Activities
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p27.png
type Activity

element Pressures/PhysicalDamage/Analysis/InfoGaps
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p28.png
type String10000Type
facets
Kind Value
minLength 1
maxLength 10000

element Pressures/PhysicalDamage/AssessmentPI
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p29.png

element Pressures/PhysicalDamage/AssessmentPI/Topic
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p30.png
type TopicAssessPhysicalDamage
facets
Kind Value
enumeration PhysicalDamage6_1
enumeration PhysicalDamage6_2
enumeration NotReported

element Pressures/PhysicalDamage/AssessmentPI/Assessment
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p31.png
type Assessment

element Pressures/Noise
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p32.png

element Pressures/Noise/MarineUnitID
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p33.png
type MarineUnitID
facets
Kind Value
minLength 3
maxLength 42

element Pressures/Noise/Metadata
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p34.png
type Metadata

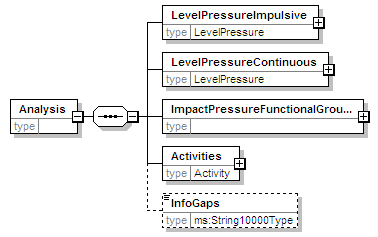

element Pressures/Noise/Analysis
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p35.png

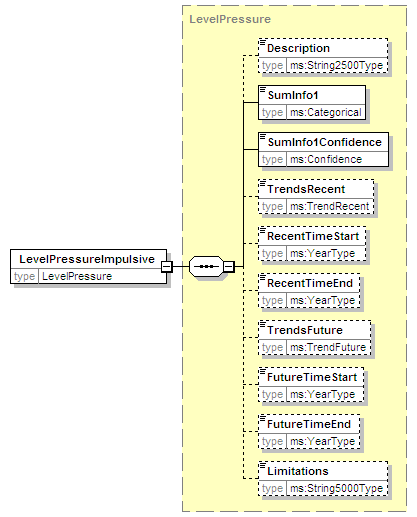

element Pressures/Noise/Analysis/LevelPressureImpulsive
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p36.png
type LevelPressure

element Pressures/Noise/Analysis/LevelPressureContinuous
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p37.png
type LevelPressure

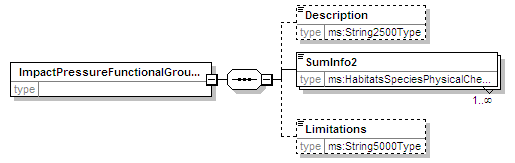

element Pressures/Noise/Analysis/ImpactPressureFunctionalGroups
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p38.png

element Pressures/Noise/Analysis/ImpactPressureFunctionalGroups/Description
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p39.png
type String2500Type
facets
Kind Value
minLength 1
maxLength 2500

element Pressures/Noise/Analysis/ImpactPressureFunctionalGroups/SumInfo2
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p40.png
type HabitatsSpeciesPhysicalChemicalFeatures

element Pressures/Noise/Analysis/ImpactPressureFunctionalGroups/Limitations
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p41.png
type String5000Type
facets
Kind Value
minLength 1
maxLength 5000

element Pressures/Noise/Analysis/Activities
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p42.png
type Activity

element Pressures/Noise/Analysis/InfoGaps
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p43.png
type String10000Type
facets
Kind Value
minLength 1
maxLength 10000

element Pressures/Noise/AssessmentPI
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p44.png

element Pressures/Noise/AssessmentPI/Topic
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p45.png
type TopicAssessNoise
facets
Kind Value
enumeration NoiseImpulsive11_1
enumeration NoiseContinuous11_2
enumeration NoiseFunctionalGroupD11
enumeration NotReported

element Pressures/Noise/AssessmentPI/Assessment
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p46.png
type Assessment

element Pressures/Litter
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p47.png

element Pressures/Litter/MarineUnitID
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p48.png
type MarineUnitID
facets
Kind Value
minLength 3
maxLength 42

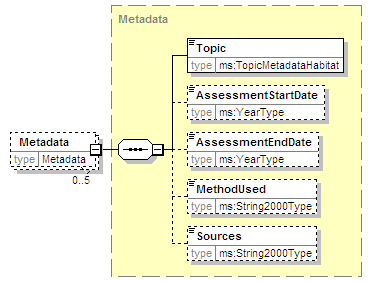

element Pressures/Litter/Metadata
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p49.png
type Metadata

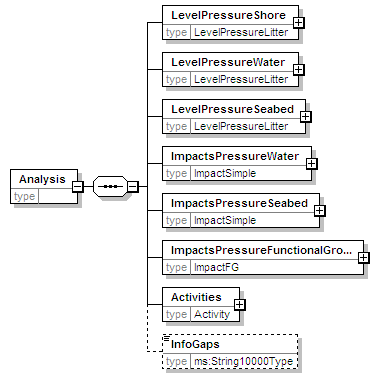

element Pressures/Litter/Analysis
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p50.png

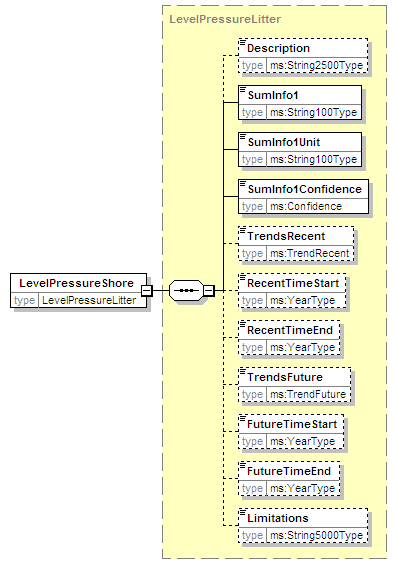

element Pressures/Litter/Analysis/LevelPressureShore
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p51.png
type LevelPressureLitter

element Pressures/Litter/Analysis/LevelPressureWater
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p52.png
type LevelPressureLitter

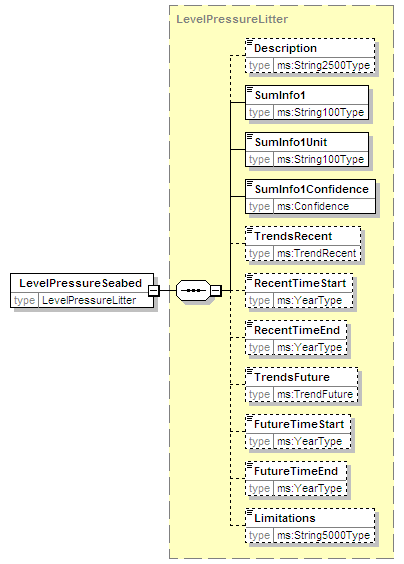

element Pressures/Litter/Analysis/LevelPressureSeabed
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p53.png
type LevelPressureLitter

element Pressures/Litter/Analysis/ImpactsPressureWater
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p54.png
type ImpactSimple

element Pressures/Litter/Analysis/ImpactsPressureSeabed
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p55.png
type ImpactSimple

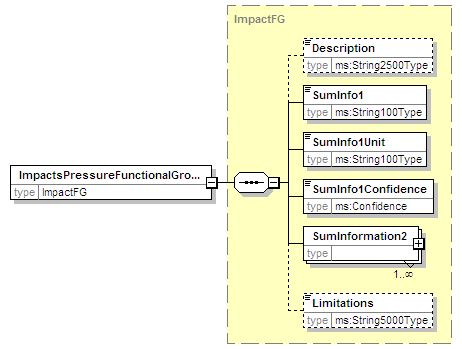

element Pressures/Litter/Analysis/ImpactsPressureFunctionalGroup
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p56.png
type ImpactFG

element Pressures/Litter/Analysis/Activities
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p57.png
type Activity

element Pressures/Litter/Analysis/InfoGaps
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p58.png
type String10000Type
facets
Kind Value
minLength 1
maxLength 10000

element Pressures/Litter/AssessmentPI
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p59.png

element Pressures/Litter/AssessmentPI/Topic
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p60.png
type TopicAssessLitter
facets
Kind Value
enumeration LitterShores10_1
enumeration LitterWaterColumnSurface10_1
enumeration LitterSeabed10_1
enumeration LitterWaterColumnHabitats10_2
enumeration LitterSeabedHabitats10_2
enumeration LitterFunctionalGroups10_2
enumeration NotReported

element Pressures/Litter/AssessmentPI/Assessment
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p61.png
type Assessment

element Pressures/HydrologicalProcesses
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p62.png

element Pressures/HydrologicalProcesses/MarineUnitID
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p63.png
type MarineUnitID
facets
Kind Value
minLength 3
maxLength 42

element Pressures/HydrologicalProcesses/Metadata
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p64.png
type Metadata

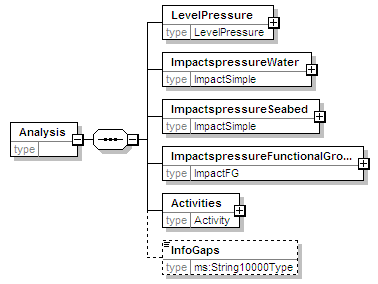

element Pressures/HydrologicalProcesses/Analysis
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p65.png

element Pressures/HydrologicalProcesses/Analysis/LevelPressure
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p66.png
type LevelPressure

element Pressures/HydrologicalProcesses/Analysis/ImpactspressureWater
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p67.png
type ImpactSimple

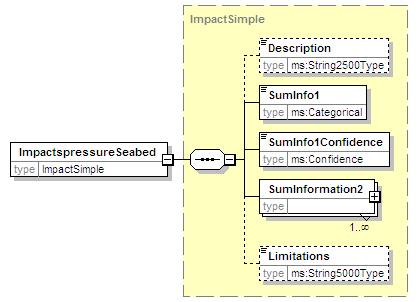

element Pressures/HydrologicalProcesses/Analysis/ImpactspressureSeabed
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p68.png
type ImpactSimple

element Pressures/HydrologicalProcesses/Analysis/ImpactspressureFunctionalGroup
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p69.png
type ImpactFG

element Pressures/HydrologicalProcesses/Analysis/Activities
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p70.png
type Activity

element Pressures/HydrologicalProcesses/Analysis/InfoGaps
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p71.png
type String10000Type
facets
Kind Value
minLength 1
maxLength 10000

element Pressures/HydrologicalProcesses/AssessmentPI
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p72.png

element Pressures/HydrologicalProcesses/AssessmentPI/Topic
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p73.png
type TopicAssessHydrology
facets
Kind Value
enumeration Hydrological7_1
enumeration HydrologicalWaterColumnHabitats7_2
enumeration HydrologicalSeabedHabitats7_2
enumeration HydrologicalFunctionalGroups7_2
enumeration NotReported

element Pressures/HydrologicalProcesses/AssessmentPI/Assessment
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p74.png
type Assessment

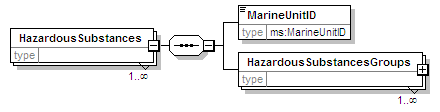

element Pressures/HazardousSubstances
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p75.png

element Pressures/HazardousSubstances/MarineUnitID
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p76.png
type MarineUnitID
facets
Kind Value
minLength 3
maxLength 42

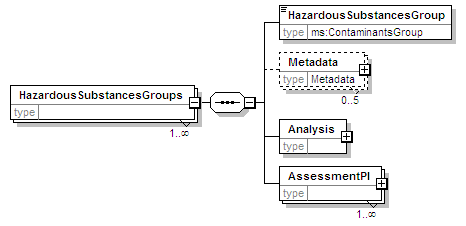

element Pressures/HazardousSubstances/HazardousSubstancesGroups
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p77.png

element Pressures/HazardousSubstances/HazardousSubstancesGroups/HazardousSubstancesGroup
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p78.png
type ContaminantsGroup
facets
Kind Value
enumeration ContaminantsSynthetic
enumeration ContaminantsNonSynthetic
enumeration ContaminationRadioNuclides
enumeration NotReported

element Pressures/HazardousSubstances/HazardousSubstancesGroups/Metadata
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p79.png
type Metadata

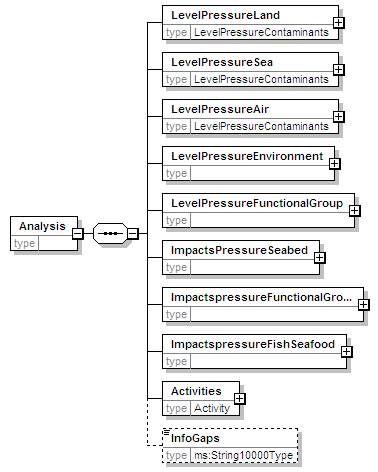

element Pressures/HazardousSubstances/HazardousSubstancesGroups/Analysis
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p80.png

element Pressures/HazardousSubstances/HazardousSubstancesGroups/Analysis/LevelPressureLand
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p81.png
type LevelPressureContaminants

element Pressures/HazardousSubstances/HazardousSubstancesGroups/Analysis/LevelPressureSea
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p82.png
type LevelPressureContaminants

element Pressures/HazardousSubstances/HazardousSubstancesGroups/Analysis/LevelPressureAir

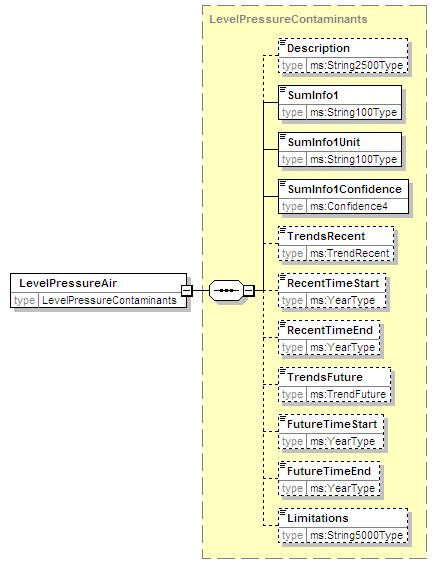

diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p83.png
type LevelPressureContaminants

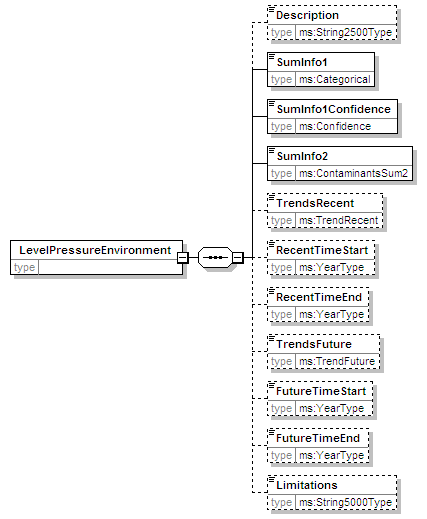

element Pressures/HazardousSubstances/HazardousSubstancesGroups/Analysis/LevelPressureEnvironment
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p84.png

element Pressures/HazardousSubstances/HazardousSubstancesGroups/Analysis/LevelPressureEnvironment/Description
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p85.png
type String2500Type
facets
Kind Value
minLength 1
maxLength 2500

element Pressures/HazardousSubstances/HazardousSubstancesGroups/Analysis/LevelPressureEnvironment/SumInfo1
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p86.png
type Categorical
facets
Kind Value
enumeration lessthan1%
enumeration 1-5%
enumeration 5-25%
enumeration 25-50%
enumeration 50-75%
enumeration 75-100%
enumeration Unknown_NotAssessed
enumeration NotReported

element Pressures/HazardousSubstances/HazardousSubstancesGroups/Analysis/LevelPressureEnvironment/SumInfo1Confidence
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p87.png
type Confidence
facets
Kind Value
enumeration Low
enumeration Moderate
enumeration High
enumeration NotRelevant
enumeration NotReported

element Pressures/HazardousSubstances/HazardousSubstancesGroups/Analysis/LevelPressureEnvironment/SumInfo2
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p88.png
type ContaminantsSum2
facets
Kind Value
enumeration Water
enumeration Sediment
enumeration SeabedBiota
enumeration NotReported

element Pressures/HazardousSubstances/HazardousSubstancesGroups/Analysis/LevelPressureEnvironment/TrendsRecent
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p89.png
type TrendRecent
facets
Kind Value
enumeration Increasing
enumeration Stable
enumeration Decreasing
enumeration Unknown_NotAssessed
enumeration NotReported

element Pressures/HazardousSubstances/HazardousSubstancesGroups/Analysis/LevelPressureEnvironment/RecentTimeStart
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p90.png
type YearType
facets
Kind Value
pattern [1-2][0-9]{3}

element Pressures/HazardousSubstances/HazardousSubstancesGroups/Analysis/LevelPressureEnvironment/RecentTimeEnd
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p91.png
type YearType
facets
Kind Value
pattern [1-2][0-9]{3}

element Pressures/HazardousSubstances/HazardousSubstancesGroups/Analysis/LevelPressureEnvironment/TrendsFuture
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p92.png
type TrendFuture
facets
Kind Value
enumeration Increase
enumeration BeStable
enumeration Decrease
enumeration Unknown_NotAssessed
enumeration NotReported

element Pressures/HazardousSubstances/HazardousSubstancesGroups/Analysis/LevelPressureEnvironment/FutureTimeStart
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p93.png
type YearType
facets
Kind Value
pattern [1-2][0-9]{3}

element Pressures/HazardousSubstances/HazardousSubstancesGroups/Analysis/LevelPressureEnvironment/FutureTimeEnd
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p94.png
type YearType
facets
Kind Value
pattern [1-2][0-9]{3}

element Pressures/HazardousSubstances/HazardousSubstancesGroups/Analysis/LevelPressureEnvironment/Limitations
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p95.png
type String5000Type
facets
Kind Value
minLength 1
maxLength 5000

element Pressures/HazardousSubstances/HazardousSubstancesGroups/Analysis/LevelPressureFunctionalGroup

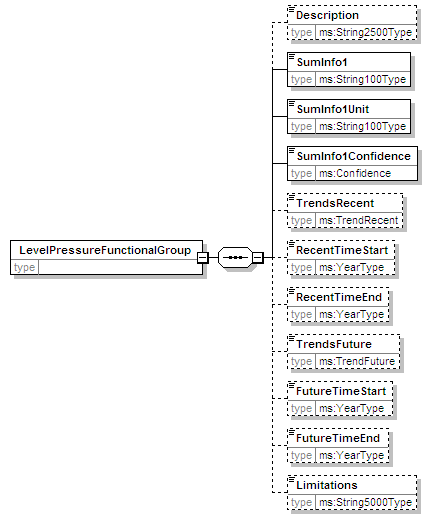

diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p96.png

element Pressures/HazardousSubstances/HazardousSubstancesGroups/Analysis/LevelPressureFunctionalGroup/Description
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p97.png
type String2500Type
facets
Kind Value
minLength 1
maxLength 2500

element Pressures/HazardousSubstances/HazardousSubstancesGroups/Analysis/LevelPressureFunctionalGroup/SumInfo1
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p98.png
type String100Type
facets
Kind Value
minLength 1
maxLength 100

element Pressures/HazardousSubstances/HazardousSubstancesGroups/Analysis/LevelPressureFunctionalGroup/SumInfo1Unit
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p99.png
type String100Type
facets
Kind Value
minLength 1
maxLength 100

element Pressures/HazardousSubstances/HazardousSubstancesGroups/Analysis/LevelPressureFunctionalGroup/SumInfo1Confidence
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p100.png
type Confidence
facets
Kind Value
enumeration Low
enumeration Moderate
enumeration High
enumeration NotRelevant
enumeration NotReported

element Pressures/HazardousSubstances/HazardousSubstancesGroups/Analysis/LevelPressureFunctionalGroup/TrendsRecent
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p101.png
type TrendRecent
facets
Kind Value
enumeration Increasing
enumeration Stable
enumeration Decreasing
enumeration Unknown_NotAssessed
enumeration NotReported

element Pressures/HazardousSubstances/HazardousSubstancesGroups/Analysis/LevelPressureFunctionalGroup/RecentTimeStart
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p102.png
type YearType
facets
Kind Value
pattern [1-2][0-9]{3}

element Pressures/HazardousSubstances/HazardousSubstancesGroups/Analysis/LevelPressureFunctionalGroup/RecentTimeEnd
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p103.png
type YearType
facets
Kind Value
pattern [1-2][0-9]{3}

element Pressures/HazardousSubstances/HazardousSubstancesGroups/Analysis/LevelPressureFunctionalGroup/TrendsFuture
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p104.png
type TrendFuture
facets
Kind Value
enumeration Increase
enumeration BeStable
enumeration Decrease
enumeration Unknown_NotAssessed
enumeration NotReported

element Pressures/HazardousSubstances/HazardousSubstancesGroups/Analysis/LevelPressureFunctionalGroup/FutureTimeStart
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p105.png
type YearType
facets
Kind Value
pattern [1-2][0-9]{3}

element Pressures/HazardousSubstances/HazardousSubstancesGroups/Analysis/LevelPressureFunctionalGroup/FutureTimeEnd
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p106.png
type YearType
facets
Kind Value
pattern [1-2][0-9]{3}

element Pressures/HazardousSubstances/HazardousSubstancesGroups/Analysis/LevelPressureFunctionalGroup/Limitations
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p107.png
type String5000Type
facets
Kind Value
minLength 1
maxLength 5000

element Pressures/HazardousSubstances/HazardousSubstancesGroups/Analysis/ImpactsPressureSeabed

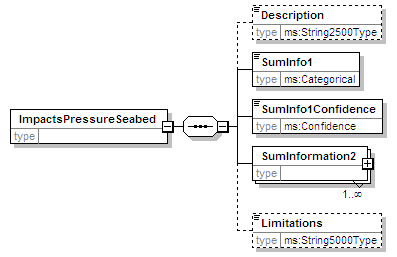

diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p108.png

element Pressures/HazardousSubstances/HazardousSubstancesGroups/Analysis/ImpactsPressureSeabed/Description
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p109.png
type String2500Type
facets
Kind Value
minLength 1
maxLength 2500

element Pressures/HazardousSubstances/HazardousSubstancesGroups/Analysis/ImpactsPressureSeabed/SumInfo1
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p110.png
type Categorical
facets
Kind Value
enumeration lessthan1%
enumeration 1-5%
enumeration 5-25%
enumeration 25-50%
enumeration 50-75%
enumeration 75-100%
enumeration Unknown_NotAssessed
enumeration NotReported

element Pressures/HazardousSubstances/HazardousSubstancesGroups/Analysis/ImpactsPressureSeabed/SumInfo1Confidence
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p111.png
type Confidence
facets
Kind Value
enumeration Low
enumeration Moderate
enumeration High
enumeration NotRelevant
enumeration NotReported

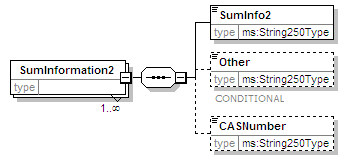

element Pressures/HazardousSubstances/HazardousSubstancesGroups/Analysis/ImpactsPressureSeabed/SumInformation2
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p112.png

element Pressures/HazardousSubstances/HazardousSubstancesGroups/Analysis/ImpactsPressureSeabed/SumInformation2/SumInfo2
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p113.png
type String250Type
facets
Kind Value
minLength 1
maxLength 255

element Pressures/HazardousSubstances/HazardousSubstancesGroups/Analysis/ImpactsPressureSeabed/SumInformation2/Other
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p114.png
type String250Type
facets
Kind Value
minLength 1
maxLength 255

element Pressures/HazardousSubstances/HazardousSubstancesGroups/Analysis/ImpactsPressureSeabed/SumInformation2/CASNumber
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p115.png
type String250Type
facets
Kind Value
minLength 1
maxLength 255

element Pressures/HazardousSubstances/HazardousSubstancesGroups/Analysis/ImpactsPressureSeabed/Limitations
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p116.png
type String5000Type
facets
Kind Value
minLength 1
maxLength 5000

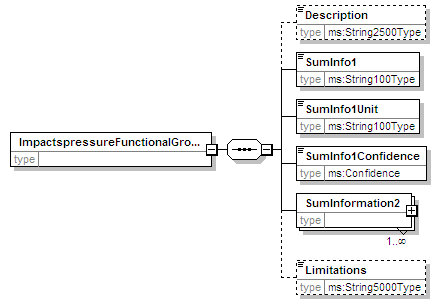

element Pressures/HazardousSubstances/HazardousSubstancesGroups/Analysis/ImpactspressureFunctionalGroup
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p117.png

element Pressures/HazardousSubstances/HazardousSubstancesGroups/Analysis/ImpactspressureFunctionalGroup/Description
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p118.png
type String2500Type
facets
Kind Value
minLength 1
maxLength 2500

element Pressures/HazardousSubstances/HazardousSubstancesGroups/Analysis/ImpactspressureFunctionalGroup/SumInfo1
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p119.png
type String100Type
facets
Kind Value
minLength 1
maxLength 100

element Pressures/HazardousSubstances/HazardousSubstancesGroups/Analysis/ImpactspressureFunctionalGroup/SumInfo1Unit
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p120.png
type String100Type
facets
Kind Value
minLength 1
maxLength 100

element Pressures/HazardousSubstances/HazardousSubstancesGroups/Analysis/ImpactspressureFunctionalGroup/SumInfo1Confidence
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p121.png
type Confidence
facets
Kind Value
enumeration Low
enumeration Moderate
enumeration High
enumeration NotRelevant
enumeration NotReported

element Pressures/HazardousSubstances/HazardousSubstancesGroups/Analysis/ImpactspressureFunctionalGroup/SumInformation2
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p122.png

element Pressures/HazardousSubstances/HazardousSubstancesGroups/Analysis/ImpactspressureFunctionalGroup/SumInformation2/SumInfo2
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p123.png
type String250Type
facets
Kind Value
minLength 1
maxLength 255

element Pressures/HazardousSubstances/HazardousSubstancesGroups/Analysis/ImpactspressureFunctionalGroup/SumInformation2/Other
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p124.png
type String250Type
facets
Kind Value
minLength 1
maxLength 255

element Pressures/HazardousSubstances/HazardousSubstancesGroups/Analysis/ImpactspressureFunctionalGroup/SumInformation2/CASNumber
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p125.png
type String250Type
facets
Kind Value
minLength 1
maxLength 255

element Pressures/HazardousSubstances/HazardousSubstancesGroups/Analysis/ImpactspressureFunctionalGroup/Limitations
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p126.png
type String5000Type
facets
Kind Value
minLength 1
maxLength 5000

element Pressures/HazardousSubstances/HazardousSubstancesGroups/Analysis/ImpactspressureFishSeafood

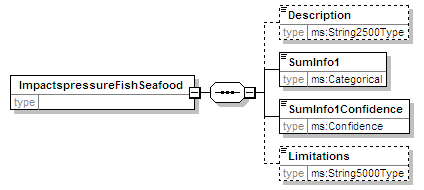

diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p127.png

element Pressures/HazardousSubstances/HazardousSubstancesGroups/Analysis/ImpactspressureFishSeafood/Description
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p128.png
type String2500Type
facets
Kind Value
minLength 1
maxLength 2500

element Pressures/HazardousSubstances/HazardousSubstancesGroups/Analysis/ImpactspressureFishSeafood/SumInfo1
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p129.png
type Categorical
facets
Kind Value
enumeration lessthan1%
enumeration 1-5%
enumeration 5-25%
enumeration 25-50%
enumeration 50-75%
enumeration 75-100%
enumeration Unknown_NotAssessed
enumeration NotReported

element Pressures/HazardousSubstances/HazardousSubstancesGroups/Analysis/ImpactspressureFishSeafood/SumInfo1Confidence
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p130.png
type Confidence
facets
Kind Value
enumeration Low
enumeration Moderate
enumeration High
enumeration NotRelevant
enumeration NotReported

element Pressures/HazardousSubstances/HazardousSubstancesGroups/Analysis/ImpactspressureFishSeafood/Limitations
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p131.png
type String5000Type
facets
Kind Value
minLength 1
maxLength 5000

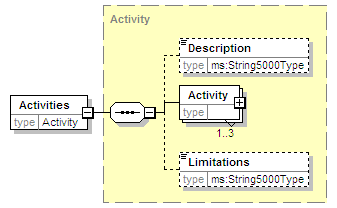

element Pressures/HazardousSubstances/HazardousSubstancesGroups/Analysis/Activities
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p132.png
type Activity

element Pressures/HazardousSubstances/HazardousSubstancesGroups/Analysis/InfoGaps
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p133.png
type String10000Type
facets
Kind Value
minLength 1
maxLength 10000

element Pressures/HazardousSubstances/HazardousSubstancesGroups/AssessmentPI
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p134.png

element Pressures/HazardousSubstances/HazardousSubstancesGroups/AssessmentPI/Topic
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p135.png
type TopicAssessContamination
facets
Kind Value
enumeration Contaminants8_1
enumeration ContaminantsFunctionalGroups8_1
enumeration ContaminantsSeabedHabitats8_2
enumeration ContaminantsFunctionalGroups8_2
enumeration ContaminantsFishSeafood9_1
enumeration NotReported

element Pressures/HazardousSubstances/HazardousSubstancesGroups/AssessmentPI/Assessment
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p136.png
type Assessment

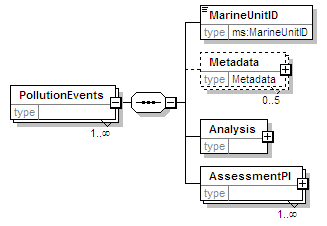

element Pressures/PollutionEvents
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p137.png

element Pressures/PollutionEvents/MarineUnitID
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p138.png
type MarineUnitID
facets
Kind Value
minLength 3
maxLength 42

element Pressures/PollutionEvents/Metadata
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p139.png
type Metadata

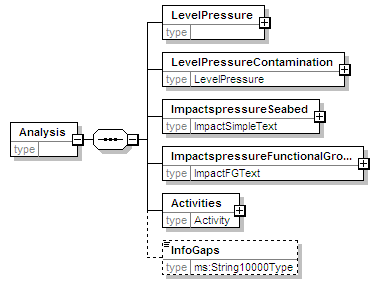

element Pressures/PollutionEvents/Analysis
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p140.png

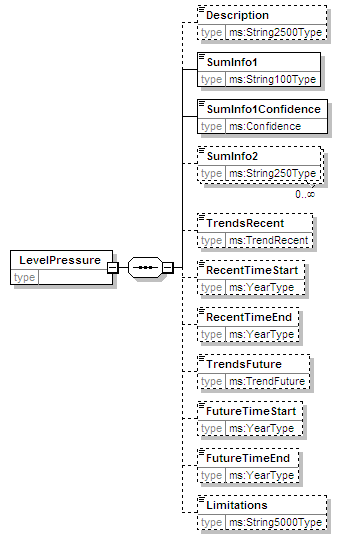

element Pressures/PollutionEvents/Analysis/LevelPressure
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p141.png

element Pressures/PollutionEvents/Analysis/LevelPressure/Description
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p142.png
type String2500Type
facets
Kind Value
minLength 1
maxLength 2500

element Pressures/PollutionEvents/Analysis/LevelPressure/SumInfo1
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p143.png
type String100Type
facets
Kind Value
minLength 1
maxLength 100

element Pressures/PollutionEvents/Analysis/LevelPressure/SumInfo1Confidence
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p144.png
type Confidence
facets
Kind Value
enumeration Low
enumeration Moderate
enumeration High
enumeration NotRelevant
enumeration NotReported

element Pressures/PollutionEvents/Analysis/LevelPressure/SumInfo2
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p145.png
type String250Type
facets
Kind Value
minLength 1
maxLength 255

element Pressures/PollutionEvents/Analysis/LevelPressure/TrendsRecent
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p146.png
type TrendRecent
facets
Kind Value
enumeration Increasing
enumeration Stable
enumeration Decreasing
enumeration Unknown_NotAssessed
enumeration NotReported

element Pressures/PollutionEvents/Analysis/LevelPressure/RecentTimeStart
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p147.png
type YearType
facets
Kind Value
pattern [1-2][0-9]{3}

element Pressures/PollutionEvents/Analysis/LevelPressure/RecentTimeEnd
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p148.png
type YearType
facets
Kind Value
pattern [1-2][0-9]{3}

element Pressures/PollutionEvents/Analysis/LevelPressure/TrendsFuture
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p149.png
type TrendFuture
facets
Kind Value
enumeration Increase
enumeration BeStable
enumeration Decrease
enumeration Unknown_NotAssessed
enumeration NotReported

element Pressures/PollutionEvents/Analysis/LevelPressure/FutureTimeStart
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p150.png
type YearType
facets
Kind Value
pattern [1-2][0-9]{3}

element Pressures/PollutionEvents/Analysis/LevelPressure/FutureTimeEnd
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p151.png
type YearType
facets
Kind Value
pattern [1-2][0-9]{3}

element Pressures/PollutionEvents/Analysis/LevelPressure/Limitations
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p152.png
type String5000Type
facets
Kind Value
minLength 1
maxLength 5000

element Pressures/PollutionEvents/Analysis/LevelPressureContamination
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p153.png
type LevelPressure

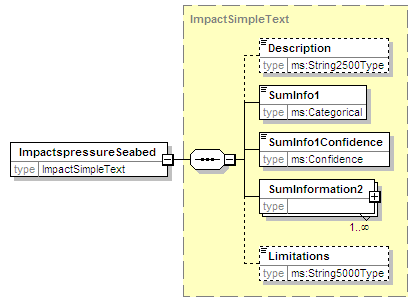

element Pressures/PollutionEvents/Analysis/ImpactspressureSeabed
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p154.png
type ImpactSimpleText

element Pressures/PollutionEvents/Analysis/ImpactspressureFunctionalGroup
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p155.png
type ImpactFGText

element Pressures/PollutionEvents/Analysis/Activities
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p156.png
type Activity

element Pressures/PollutionEvents/Analysis/InfoGaps
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p157.png
type String10000Type
facets
Kind Value
minLength 1
maxLength 10000

element Pressures/PollutionEvents/AssessmentPI
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p158.png

element Pressures/PollutionEvents/AssessmentPI/Topic
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p159.png
type TopicAssessPollution
facets
Kind Value
enumeration PollutionEvents8_2_2
enumeration PollutionEventsSeabedHabitats8_2_2
enumeration PollutionEventsFunctionalGroups8_2_2
enumeration NotReported

element Pressures/PollutionEvents/AssessmentPI/Assessment
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p160.png
type Assessment

element Pressures/Nutrients
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p161.png

element Pressures/Nutrients/MarineUnitID
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p162.png

element Pressures/Nutrients/Metadata
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p163.png
type Metadata

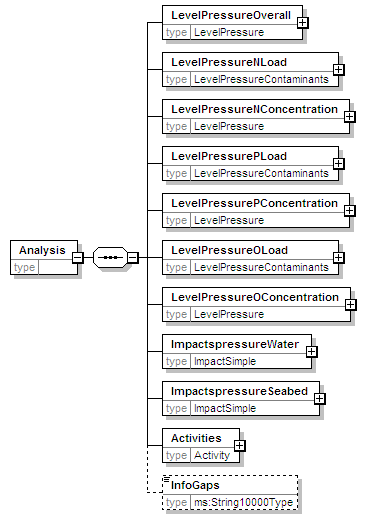

element Pressures/Nutrients/Analysis
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p164.png

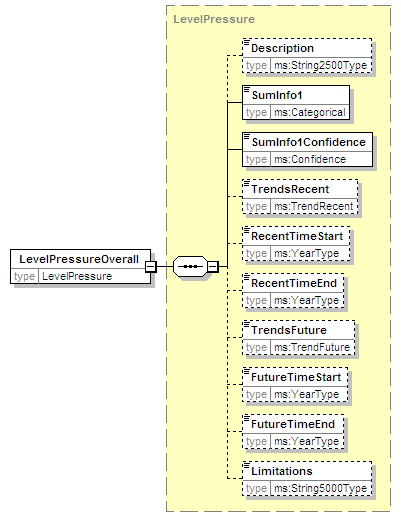

element Pressures/Nutrients/Analysis/LevelPressureOverall
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p165.png
type LevelPressure

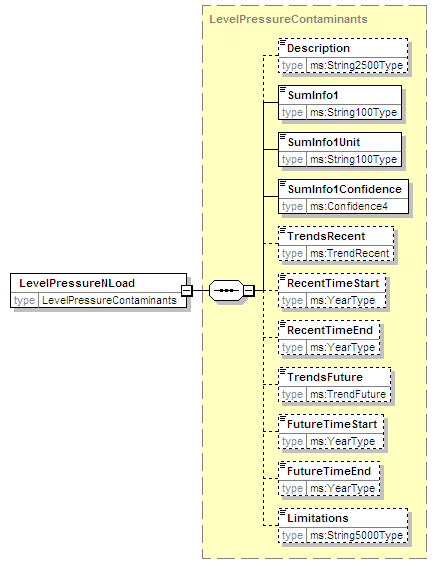

element Pressures/Nutrients/Analysis/LevelPressureNLoad
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p166.png
type LevelPressureContaminants

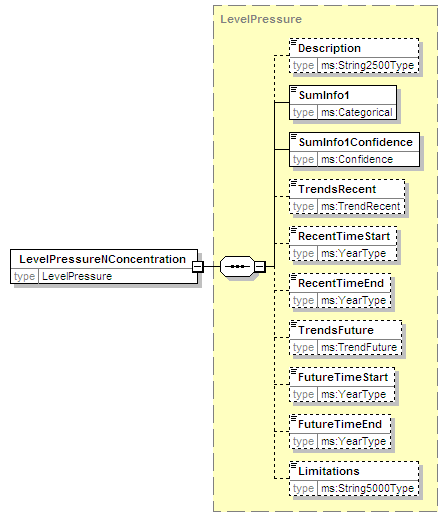

element Pressures/Nutrients/Analysis/LevelPressureNConcentration
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p167.png
type LevelPressure

element Pressures/Nutrients/Analysis/LevelPressurePLoad
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p168.png
type LevelPressureContaminants

element Pressures/Nutrients/Analysis/LevelPressurePConcentration
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p169.png
type LevelPressure

element Pressures/Nutrients/Analysis/LevelPressureOLoad
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p170.png
type LevelPressureContaminants

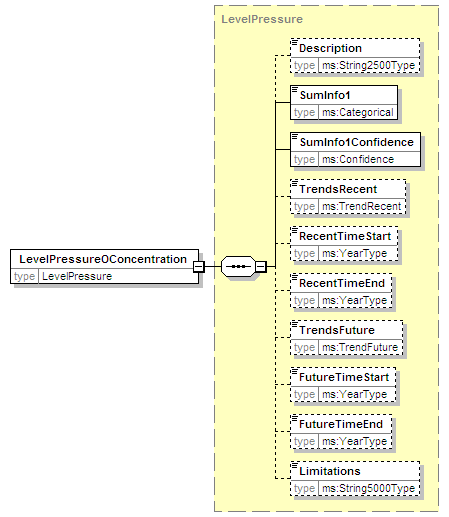

element Pressures/Nutrients/Analysis/LevelPressureOConcentration
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p171.png
type LevelPressure

element Pressures/Nutrients/Analysis/ImpactspressureWater
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p172.png
type ImpactSimple

element Pressures/Nutrients/Analysis/ImpactspressureSeabed
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p173.png
type ImpactSimple

element Pressures/Nutrients/Analysis/Activities
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p174.png
type Activity

element Pressures/Nutrients/Analysis/InfoGaps
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p175.png
type String10000Type
facets
Kind Value
minLength 1
maxLength 10000

element Pressures/Nutrients/AssessmentPI
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p176.png

element Pressures/Nutrients/AssessmentPI/Topic
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p177.png
type TopicAssessNutrient
facets
Kind Value
enumeration NutrientsNitrogen5_1
enumeration NutrientsPhosphorus5_1
enumeration NutrientsOrganicMatter5_1
enumeration NutrientsOrganicEnrichment5_1
enumeration NutrientsEnrichmentWaterColumn5_2or5_3
enumeration NutrientsEnrichmentSeabedHabitats5_2or5_3
enumeration NotReported

element Pressures/Nutrients/AssessmentPI/Assessment
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p178.png
type Assessment

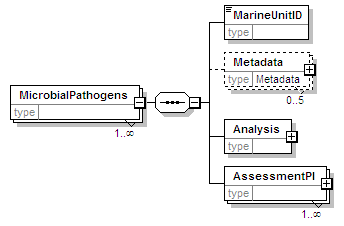

element Pressures/MicrobialPathogens
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p179.png

element Pressures/MicrobialPathogens/MarineUnitID
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p180.png

element Pressures/MicrobialPathogens/Metadata
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p181.png
type Metadata

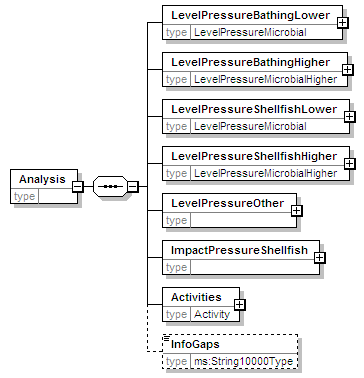

element Pressures/MicrobialPathogens/Analysis
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p182.png

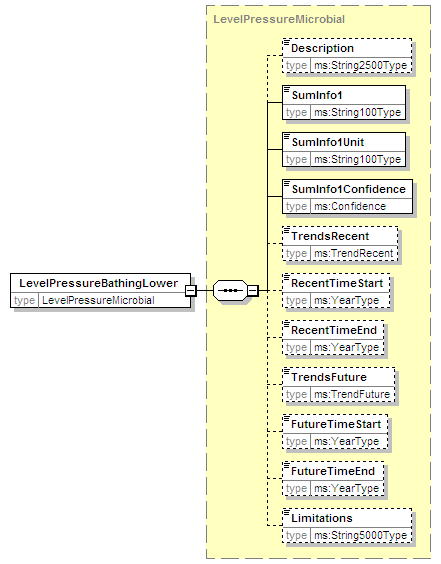

element Pressures/MicrobialPathogens/Analysis/LevelPressureBathingLower
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p183.png
type LevelPressureMicrobial

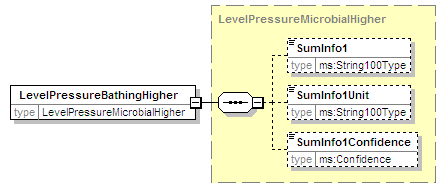

element Pressures/MicrobialPathogens/Analysis/LevelPressureBathingHigher
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p184.png
type LevelPressureMicrobialHigher

element Pressures/MicrobialPathogens/Analysis/LevelPressureShellfishLower

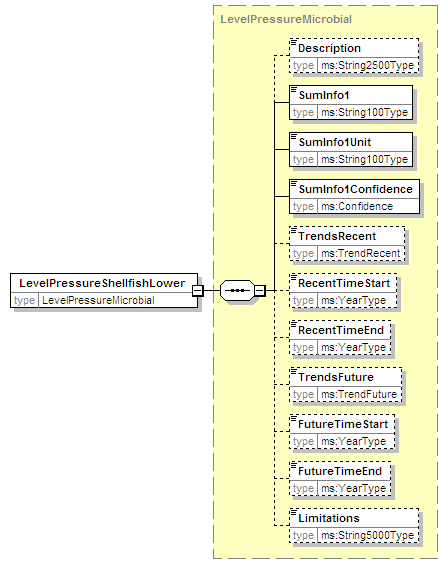

diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p185.png
type LevelPressureMicrobial

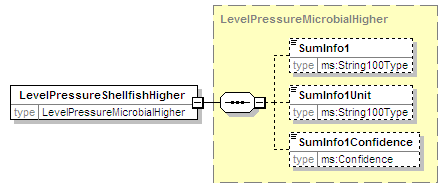

element Pressures/MicrobialPathogens/Analysis/LevelPressureShellfishHigher
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p186.png
type LevelPressureMicrobialHigher

element Pressures/MicrobialPathogens/Analysis/LevelPressureOther

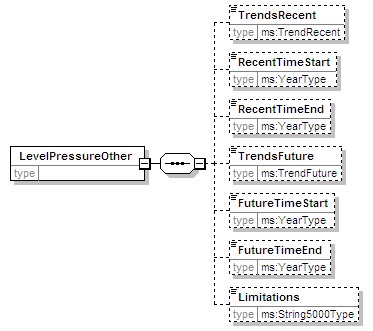

diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p187.png

element Pressures/MicrobialPathogens/Analysis/LevelPressureOther/TrendsRecent
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p188.png
type TrendRecent
facets
Kind Value
enumeration Increasing
enumeration Stable
enumeration Decreasing
enumeration Unknown_NotAssessed
enumeration NotReported

element Pressures/MicrobialPathogens/Analysis/LevelPressureOther/RecentTimeStart
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p189.png
type YearType
facets
Kind Value
pattern [1-2][0-9]{3}

element Pressures/MicrobialPathogens/Analysis/LevelPressureOther/RecentTimeEnd
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p190.png
type YearType
facets
Kind Value
pattern [1-2][0-9]{3}

element Pressures/MicrobialPathogens/Analysis/LevelPressureOther/TrendsFuture
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p191.png
type TrendFuture
facets
Kind Value
enumeration Increase
enumeration BeStable
enumeration Decrease
enumeration Unknown_NotAssessed
enumeration NotReported

element Pressures/MicrobialPathogens/Analysis/LevelPressureOther/FutureTimeStart
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p192.png
type YearType
facets
Kind Value
pattern [1-2][0-9]{3}

element Pressures/MicrobialPathogens/Analysis/LevelPressureOther/FutureTimeEnd
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p193.png
type YearType
facets
Kind Value
pattern [1-2][0-9]{3}

element Pressures/MicrobialPathogens/Analysis/LevelPressureOther/Limitations
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p194.png
type String5000Type
facets
Kind Value
minLength 1
maxLength 5000

element Pressures/MicrobialPathogens/Analysis/ImpactPressureShellfish

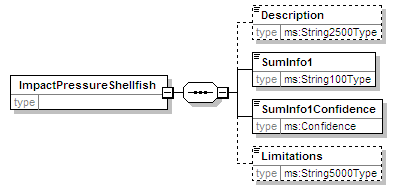

diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p195.png

element Pressures/MicrobialPathogens/Analysis/ImpactPressureShellfish/Description
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p196.png
type String2500Type
facets
Kind Value
minLength 1
maxLength 2500

element Pressures/MicrobialPathogens/Analysis/ImpactPressureShellfish/SumInfo1
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p197.png
type String100Type
facets
Kind Value
minLength 1
maxLength 100

element Pressures/MicrobialPathogens/Analysis/ImpactPressureShellfish/SumInfo1Confidence
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p198.png
type Confidence
facets
Kind Value
enumeration Low
enumeration Moderate
enumeration High
enumeration NotRelevant
enumeration NotReported

element Pressures/MicrobialPathogens/Analysis/ImpactPressureShellfish/Limitations
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p199.png
type String5000Type
facets
Kind Value
minLength 1
maxLength 5000

element Pressures/MicrobialPathogens/Analysis/Activities
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p200.png
type Activity

element Pressures/MicrobialPathogens/Analysis/InfoGaps
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p201.png
type String10000Type
facets
Kind Value
minLength 1
maxLength 10000

element Pressures/MicrobialPathogens/AssessmentPI
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p202.png

element Pressures/MicrobialPathogens/AssessmentPI/Topic
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p203.png
type TopicAssessMicrobial
facets
Kind Value
enumeration MicrobialPathogensBathingWater
enumeration MicrobialPathogensShellfishWater
enumeration MicrobialPathogensOther
enumeration MicrobialPathogensImpactShellfishWater
enumeration NotReported

element Pressures/MicrobialPathogens/AssessmentPI/Assessment
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p204.png
type Assessment

element Pressures/NIS
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p205.png

element Pressures/NIS/MarineUnitID
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p206.png
type MarineUnitID
facets
Kind Value
minLength 3
maxLength 42

element Pressures/NIS/Metadata
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p207.png
type Metadata

element Pressures/NIS/Analysis

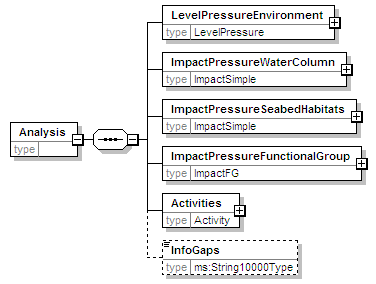

diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p208.png

element Pressures/NIS/Analysis/LevelPressureEnvironment

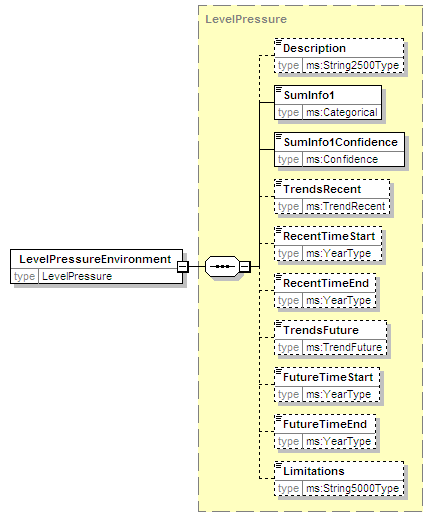

diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p209.png
type LevelPressure

element Pressures/NIS/Analysis/ImpactPressureWaterColumn
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p210.png
type ImpactSimple

element Pressures/NIS/Analysis/ImpactPressureSeabedHabitats
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p211.png
type ImpactSimple

element Pressures/NIS/Analysis/ImpactPressureFunctionalGroup
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p212.png
type ImpactFG

element Pressures/NIS/Analysis/Activities
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p213.png
type Activity

element Pressures/NIS/Analysis/InfoGaps
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p214.png
type String10000Type
facets
Kind Value
minLength 1
maxLength 10000

element Pressures/NIS/AssessmentPI
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p215.png

element Pressures/NIS/AssessmentPI/Topic
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p216.png
type TopicAssessNonIndigenous
facets
Kind Value
enumeration NIS2_1
enumeration NISWaterColumnHabitat2_2
enumeration NISSeabedHabitats2_2
enumeration NISFunctionalGroups2_2
enumeration NotReported

element Pressures/NIS/AssessmentPI/Assessment

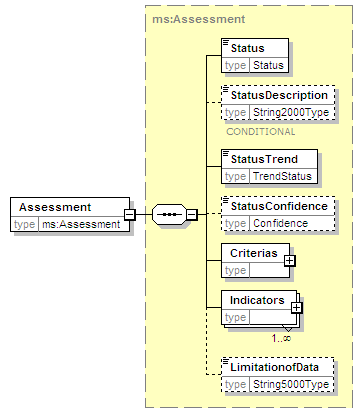

diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p217.png
type Assessment

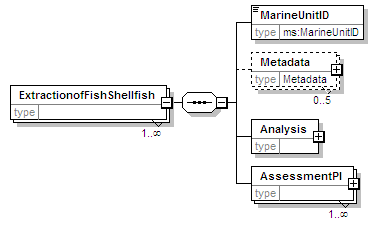

element Pressures/ExtractionofFishShellfish
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p218.png

element Pressures/ExtractionofFishShellfish/MarineUnitID
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p219.png
type MarineUnitID
facets
Kind Value
minLength 3
maxLength 42

element Pressures/ExtractionofFishShellfish/Metadata
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p220.png
type Metadata

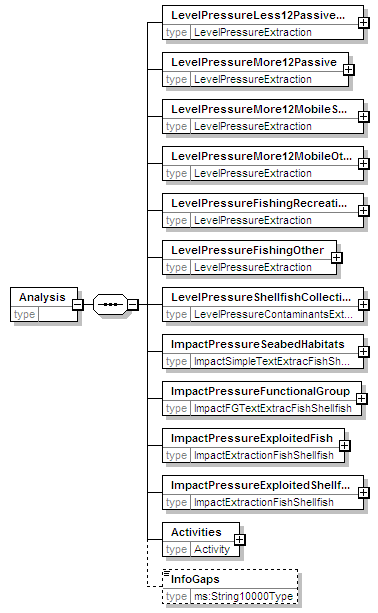

element Pressures/ExtractionofFishShellfish/Analysis
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p221.png

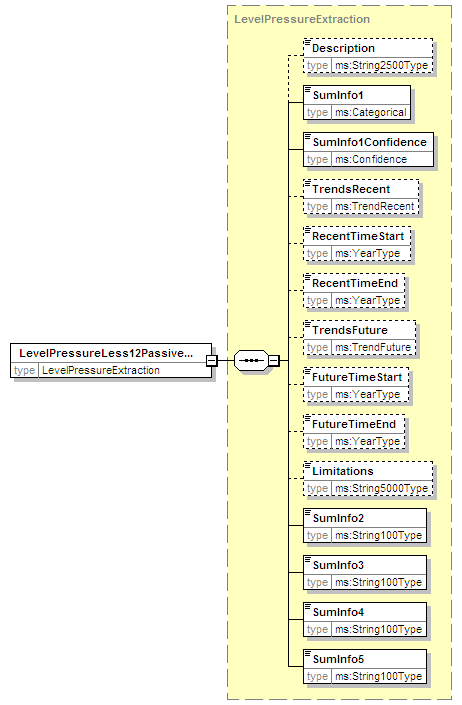

element Pressures/ExtractionofFishShellfish/Analysis/LevelPressureLess12PassiveMobile
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p222.png
type LevelPressureExtraction

element Pressures/ExtractionofFishShellfish/Analysis/LevelPressureMore12Passive
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p223.png
type LevelPressureExtraction

element Pressures/ExtractionofFishShellfish/Analysis/LevelPressureMore12MobileSeabed
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p224.png
type LevelPressureExtraction

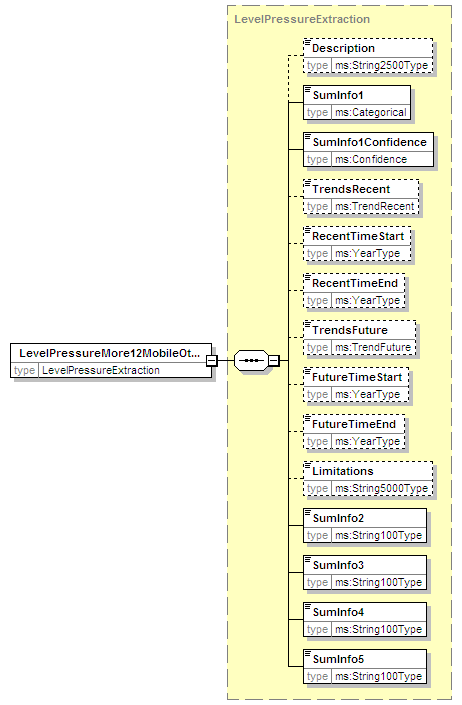

element Pressures/ExtractionofFishShellfish/Analysis/LevelPressureMore12MobileOther
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p225.png
type LevelPressureExtraction

element Pressures/ExtractionofFishShellfish/Analysis/LevelPressureFishingRecreational
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p226.png
type LevelPressureExtraction

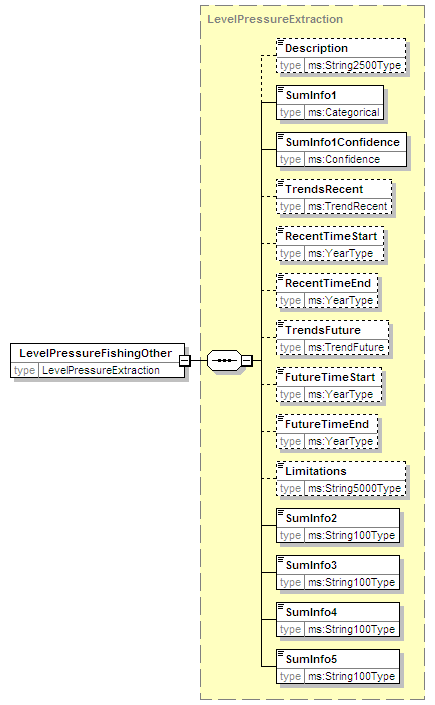

element Pressures/ExtractionofFishShellfish/Analysis/LevelPressureFishingOther
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p227.png
type LevelPressureExtraction

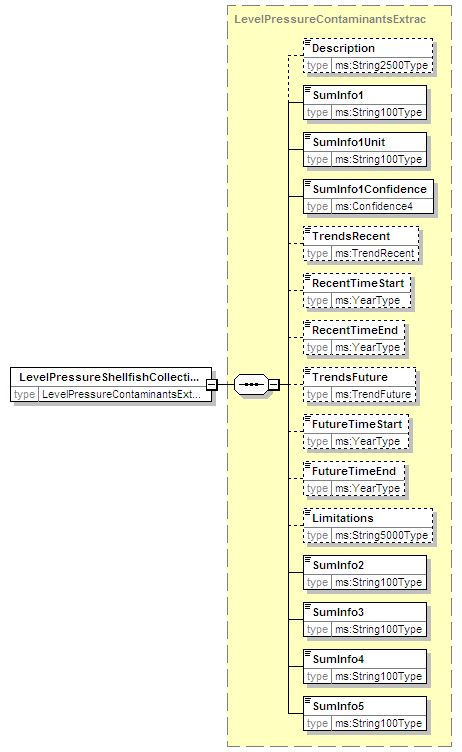

element Pressures/ExtractionofFishShellfish/Analysis/LevelPressureShellfishCollection
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p228.png
type LevelPressureContaminantsExtrac

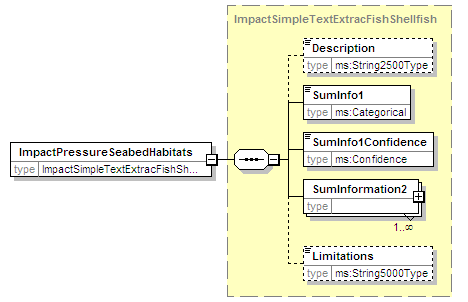

element Pressures/ExtractionofFishShellfish/Analysis/ImpactPressureSeabedHabitats
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p229.png
type ImpactSimpleTextExtracFishShellfish

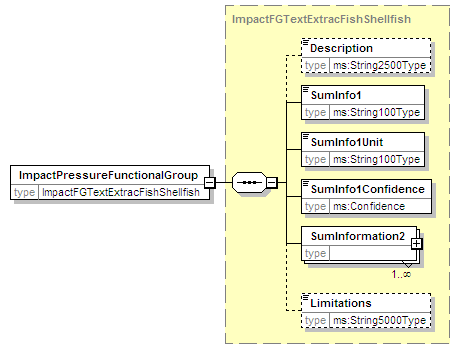

element Pressures/ExtractionofFishShellfish/Analysis/ImpactPressureFunctionalGroup
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p230.png
type ImpactFGTextExtracFishShellfish

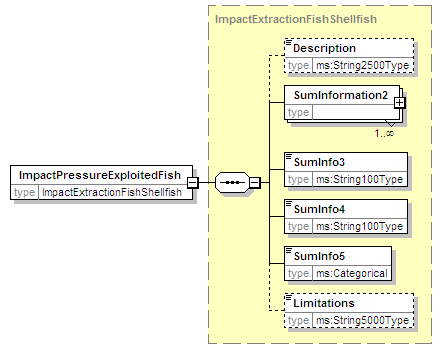

element Pressures/ExtractionofFishShellfish/Analysis/ImpactPressureExploitedFish
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p231.png
type ImpactExtractionFishShellfish

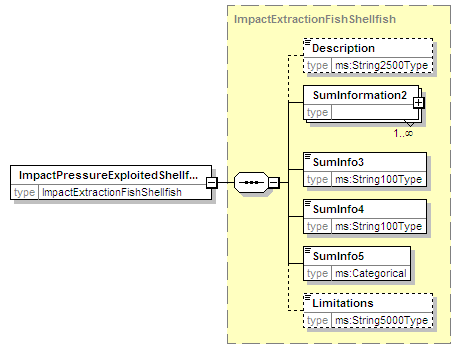

element Pressures/ExtractionofFishShellfish/Analysis/ImpactPressureExploitedShellfish
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p232.png
type ImpactExtractionFishShellfish

element Pressures/ExtractionofFishShellfish/Analysis/Activities
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p233.png
type Activity

element Pressures/ExtractionofFishShellfish/Analysis/InfoGaps
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p234.png
type String10000Type
facets
Kind Value
minLength 1
maxLength 10000

element Pressures/ExtractionofFishShellfish/AssessmentPI
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p235.png

element Pressures/ExtractionofFishShellfish/AssessmentPI/Topic
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p236.png
type TopicAssessExtraction
facets
Kind Value
enumeration Extraction3_1
enumeration ExtractionSeabedHabitats
enumeration ExtractionFunctionalGroups
enumeration ExtractionCommerciallyExpFish3_2or3_3
enumeration ExtractionCommerciallyExpShellfish3_2or3_3
enumeration Extraction_ExtractionPressure
enumeration ExtractionImpactsCommerciallyExpSpecies
enumeration ExtractionImpactsSeabedHabitats
enumeration ExtractionImpactsFunctionalGroups
enumeration NotReported

element Pressures/ExtractionofFishShellfish/AssessmentPI/Assessment
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p237.png
type Assessment

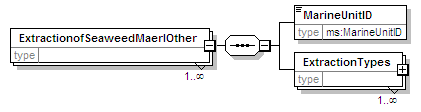

element Pressures/ExtractionofSeaweedMaerlOther
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p238.png

element Pressures/ExtractionofSeaweedMaerlOther/MarineUnitID
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p239.png
type MarineUnitID
facets
Kind Value
minLength 3
maxLength 42

element Pressures/ExtractionofSeaweedMaerlOther/ExtractionTypes

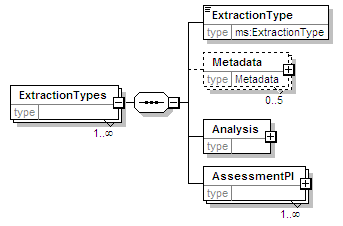

diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p240.png

element Pressures/ExtractionofSeaweedMaerlOther/ExtractionTypes/ExtractionType
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p241.png
type ExtractionType
facets
Kind Value
enumeration ExtractionSeaweed
enumeration ExtractionMaerl
enumeration ExtractionOther
enumeration NotReported

element Pressures/ExtractionofSeaweedMaerlOther/ExtractionTypes/Metadata
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p242.png
type Metadata

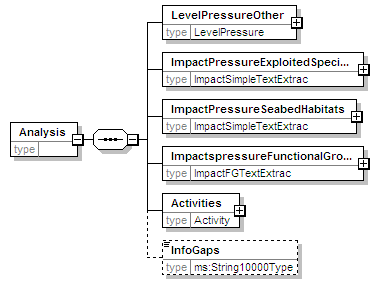

element Pressures/ExtractionofSeaweedMaerlOther/ExtractionTypes/Analysis
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p243.png

element Pressures/ExtractionofSeaweedMaerlOther/ExtractionTypes/Analysis/LevelPressureOther
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p244.png
type LevelPressure

element Pressures/ExtractionofSeaweedMaerlOther/ExtractionTypes/Analysis/ImpactPressureExploitedSpecies
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p245.png
type ImpactSimpleTextExtrac

element Pressures/ExtractionofSeaweedMaerlOther/ExtractionTypes/Analysis/ImpactPressureSeabedHabitats
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p246.png
type ImpactSimpleTextExtrac

element Pressures/ExtractionofSeaweedMaerlOther/ExtractionTypes/Analysis/ImpactspressureFunctionalGroup
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p247.png
type ImpactFGTextExtrac

element Pressures/ExtractionofSeaweedMaerlOther/ExtractionTypes/Analysis/Activities
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p248.png
type Activity

element Pressures/ExtractionofSeaweedMaerlOther/ExtractionTypes/Analysis/InfoGaps
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p249.png
type String10000Type
facets
Kind Value
minLength 1
maxLength 10000

element Pressures/ExtractionofSeaweedMaerlOther/ExtractionTypes/AssessmentPI
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p250.png

element Pressures/ExtractionofSeaweedMaerlOther/ExtractionTypes/AssessmentPI/Topic
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p251.png
type TopicAssessExtraction
facets
Kind Value
enumeration Extraction3_1
enumeration ExtractionSeabedHabitats
enumeration ExtractionFunctionalGroups
enumeration ExtractionCommerciallyExpFish3_2or3_3
enumeration ExtractionCommerciallyExpShellfish3_2or3_3
enumeration Extraction_ExtractionPressure
enumeration ExtractionImpactsCommerciallyExpSpecies
enumeration ExtractionImpactsSeabedHabitats
enumeration ExtractionImpactsFunctionalGroups
enumeration NotReported

element Pressures/ExtractionofSeaweedMaerlOther/ExtractionTypes/AssessmentPI/Assessment
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p252.png
type Assessment

element Pressures/Acidification
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p253.png

element Pressures/Acidification/MarineUnitID
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p254.png
type MarineUnitID
facets
Kind Value
minLength 3
maxLength 42

element Pressures/Acidification/Metadata
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p255.png
type Metadata

element Pressures/Acidification/Analysis
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p256.png

element Pressures/Acidification/Analysis/LevelPressureAcidification
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p257.png

element Pressures/Acidification/Analysis/LevelPressureAcidification/Description
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p258.png
type String2500Type
facets
Kind Value
minLength 1
maxLength 2500

element Pressures/Acidification/Analysis/LevelPressureAcidification/SumInfo1
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p259.png
type String100Type
facets
Kind Value
minLength 1
maxLength 100

element Pressures/Acidification/Analysis/LevelPressureAcidification/SumInfo1Confidence
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p260.png
type Confidence4
facets
Kind Value
enumeration Low
enumeration Moderate
enumeration High
enumeration 90%CI
enumeration NotRelevant
enumeration NotReported

element Pressures/Acidification/Analysis/LevelPressureAcidification/TrendsRecent
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p261.png
type TrendRecent
facets
Kind Value
enumeration Increasing
enumeration Stable
enumeration Decreasing
enumeration Unknown_NotAssessed
enumeration NotReported

element Pressures/Acidification/Analysis/LevelPressureAcidification/RecentTimeStart
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p262.png
type YearType
facets
Kind Value
pattern [1-2][0-9]{3}

element Pressures/Acidification/Analysis/LevelPressureAcidification/RecentTimeEnd
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p263.png
type YearType
facets
Kind Value
pattern [1-2][0-9]{3}

element Pressures/Acidification/Analysis/LevelPressureAcidification/TrendsFuture
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p264.png
type TrendFuture
facets
Kind Value
enumeration Increase
enumeration BeStable
enumeration Decrease
enumeration Unknown_NotAssessed
enumeration NotReported

element Pressures/Acidification/Analysis/LevelPressureAcidification/FutureTimeStart
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p265.png
type YearType
facets
Kind Value
pattern [1-2][0-9]{3}

element Pressures/Acidification/Analysis/LevelPressureAcidification/FutureTimeEnd
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p266.png
type YearType
facets
Kind Value
pattern [1-2][0-9]{3}

element Pressures/Acidification/Analysis/LevelPressureAcidification/Limitations
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p267.png
type String5000Type
facets
Kind Value
minLength 1
maxLength 5000

element Pressures/Acidification/Analysis/ImpactPressureWaterColumn
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p268.png
type ImpactSimpleAcidification

element Pressures/Acidification/Analysis/ImpactPressureSeabedHabitats
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p269.png
type ImpactSimpleAcidification

element Pressures/Acidification/Analysis/Activities
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p270.png
type Activity

element Pressures/Acidification/Analysis/InfoGaps
diagram MSFD8bPressures_2p0_diagrams/MSFD8bPressures_2p0_p271.png
type String10000Type
facets
Kind Value
minLength 1
maxLength 10000


XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
